Thin Wall Pvc Pipe Specs

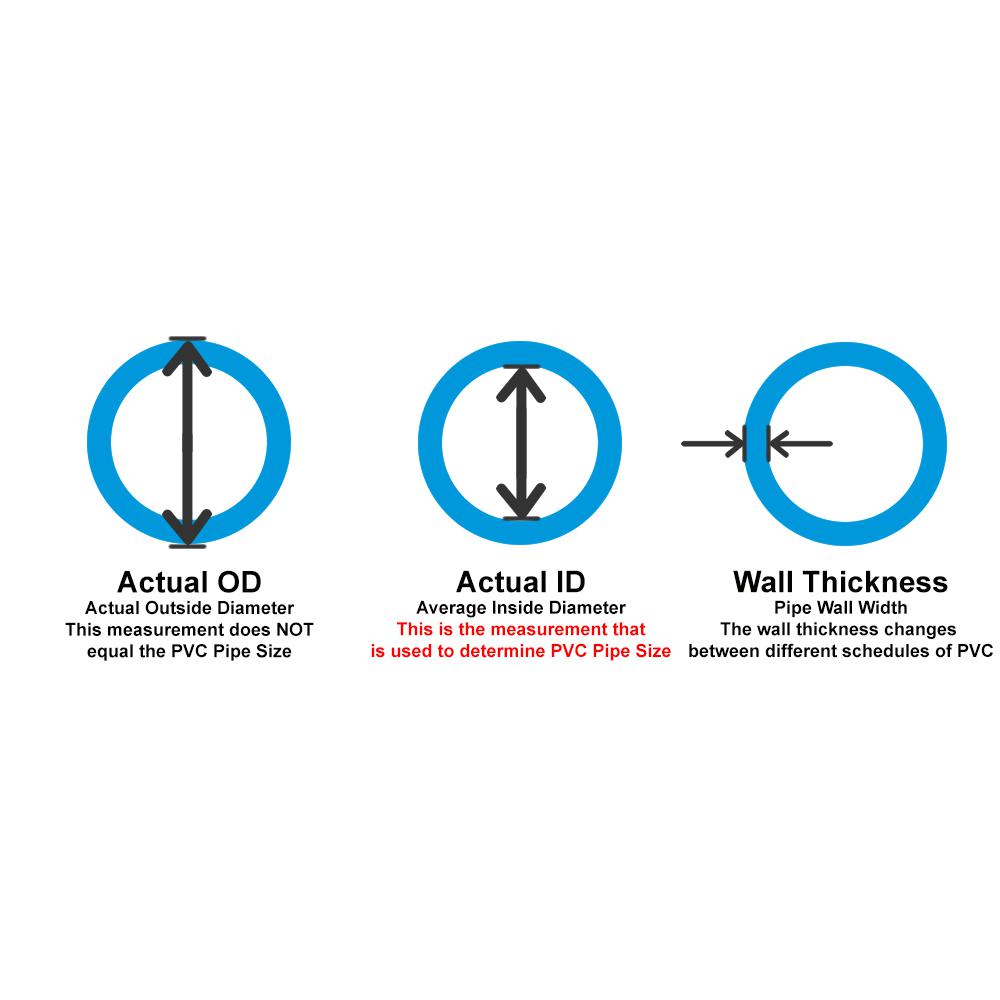

Outer diameter inside diameter and wall diameter as in wall thickness.

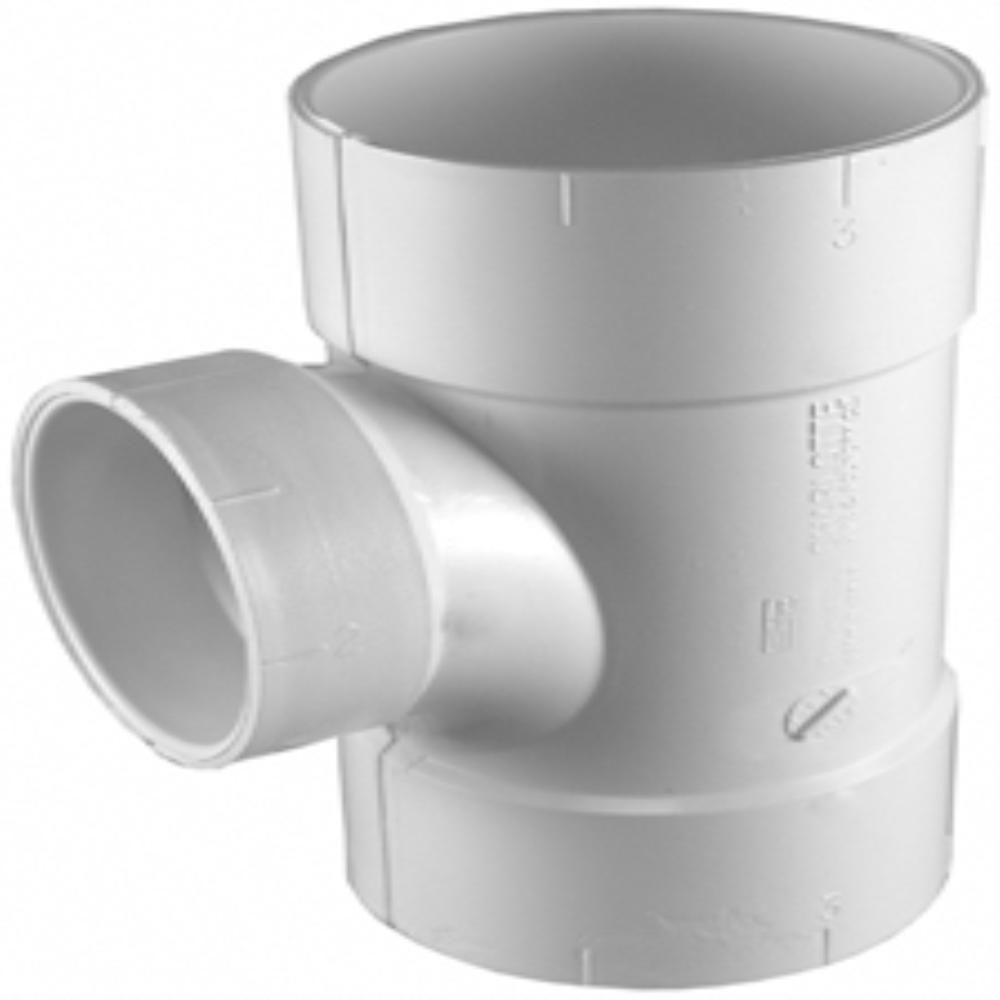

Thin wall pvc pipe specs. Outside diameter poly vinyl chloride pvc plastic drain waste and vent pipe and fittings scope. Pvc schedule 30 thin wall pipe fittings. Fittings meet astm d2729 and astm d3034 specifications and testing requirements for material quality. With thinner walls than schedule 40 fittings these are lighter in weight and have more space on the inside for high flow applications such as underground gravity flow sewer and storm drainage lines.

Wall thickness weight and inner diameter are all approximate and can vary up to 5 unless otherwise noted. When it comes to pvc pipe fittings grainger s got your back. Sdr or class sizes pressurized the second system for sizing pvc pipe is based on the standard dimension ratio a series of ratios of outer diameter to wall thickness. Easy online ordering for the ones who get it done along with 24 7 customer service free technical support more.

Usually within 0 25 or just a. The requirements of this specification are intended to provide pipe and fittings suitable for drainage of sewage and certain other liquid waste. They are also known as sdr 35 fittings. Pvc schedule 30 thin wall pipe is for drain waste and vent purposes only.

Most cpvc is also nsf rated and can take up to 180f continous temperatures. If the walls were too thin the pipe would lack structural integrity. As pvc pipe increases in diameter the walls must also be thicker. 4 abs foam core pipe abs schedule 40 dwv pipe for non pressure applications abs 3112 11 2 x 10 031322590 1 900 0 145 27 1 abs 3112 11 2 x 20 031335180 1 900 0 145 27 1 abs 3200 2 x 10 0313416702 375 37 7 0 154.

Pvc pipe sizes dimensions guide charts when it comes to the pvc pipes themselves there are 3 key metrics. To find pvc pipe od sizes you cannot simply add a certain amount to the size on the label. It is for non pressure systems where temperatures will not exceed 140 degrees f. Below are a series of pvc pipe diagrams and dimension charts to help you find the right sizes or at least get you informed as to the various common sizes.

Most pipe is pvc some is cpvc. The outside diameter is held to a much tighter tolerance. It is commonly used in drainage applications such as. There is no rusting or corroding offering years of trouble free service.

It is used in gravity fed waste elimination systems. Standard pvc is rated to 140f min. Pvc schedule 30 thin wall is lightweight non toxic. It is too thin.

Fittings are pvc which has good corrosion resistance. Schedule 40 pvc pipe should not be threaded.
